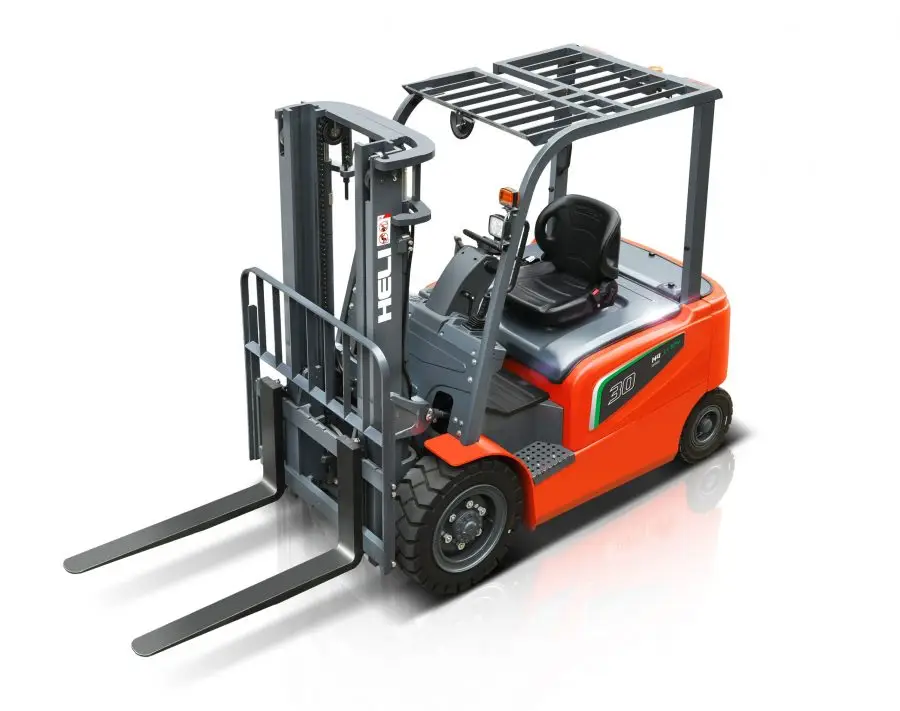

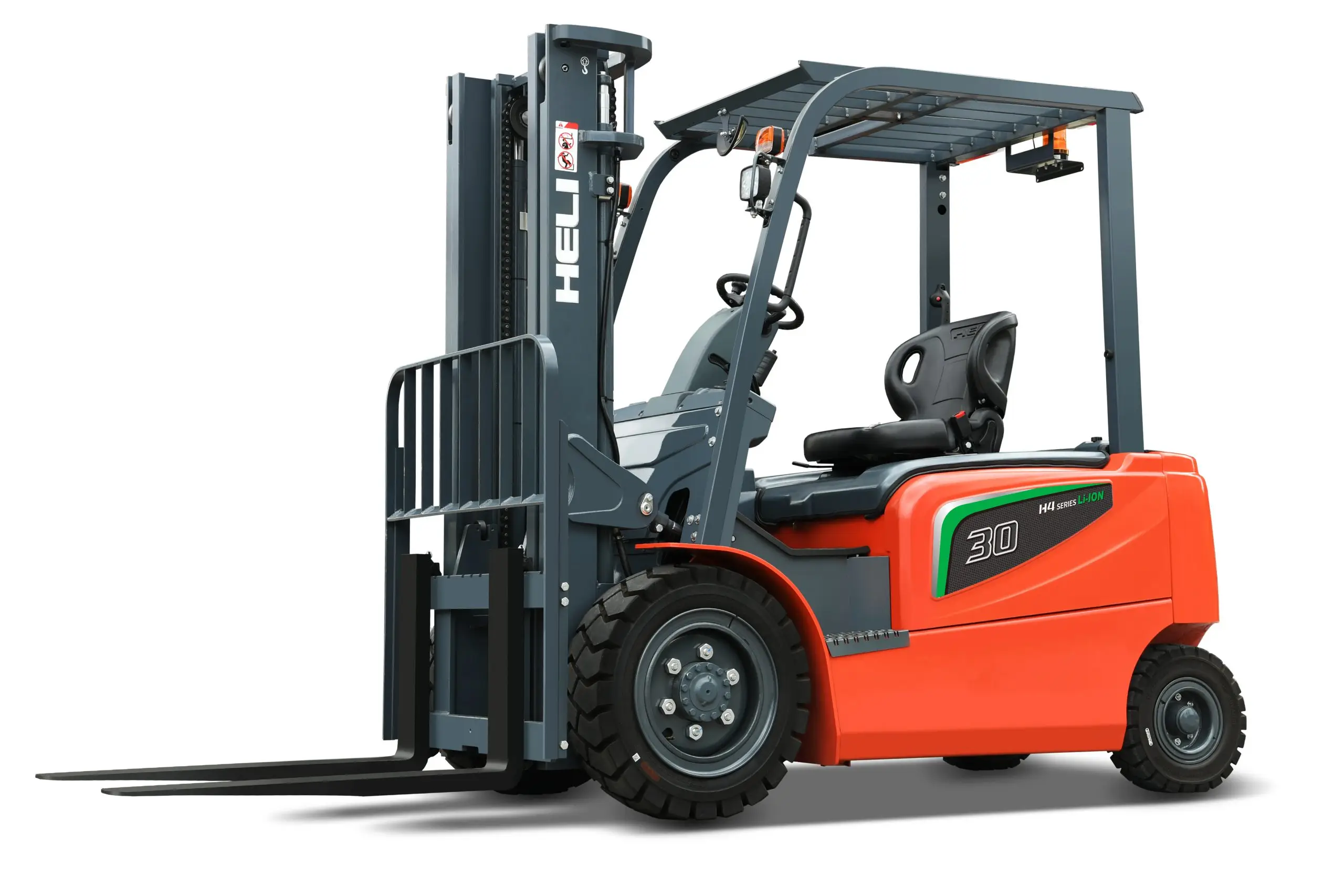

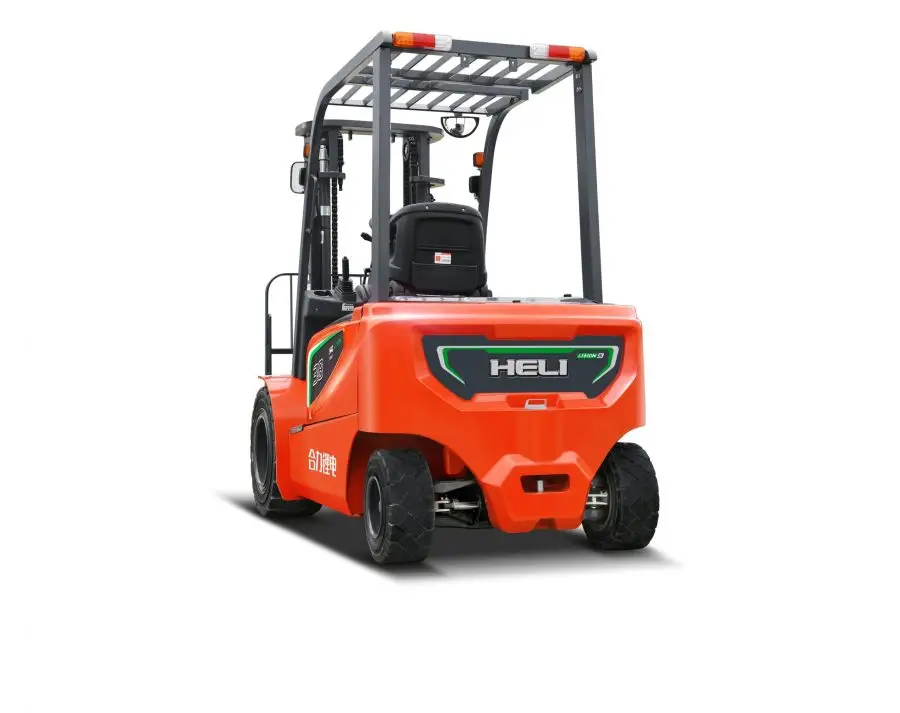

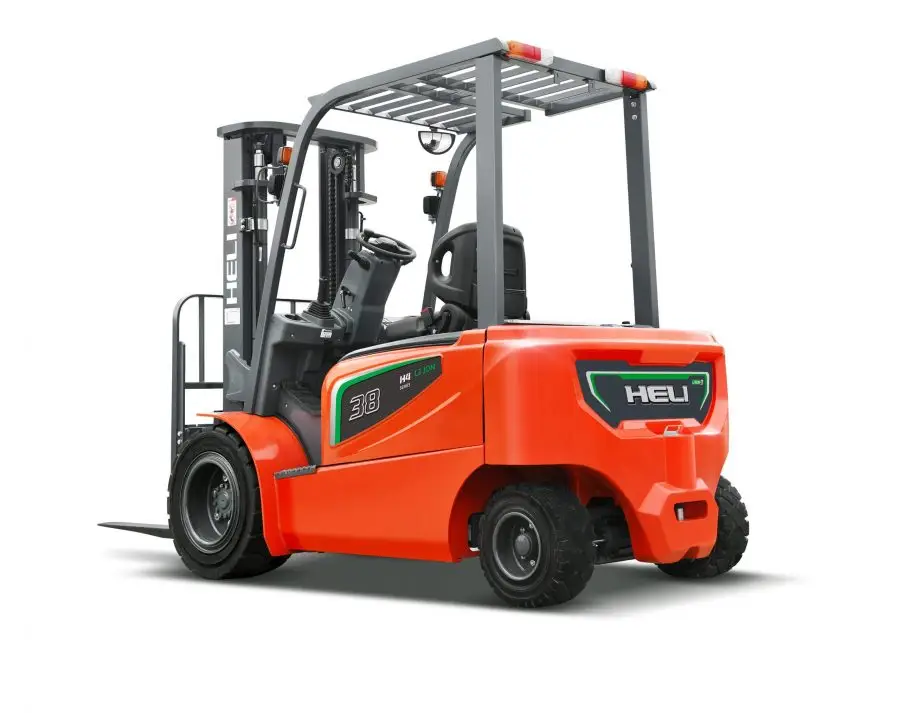

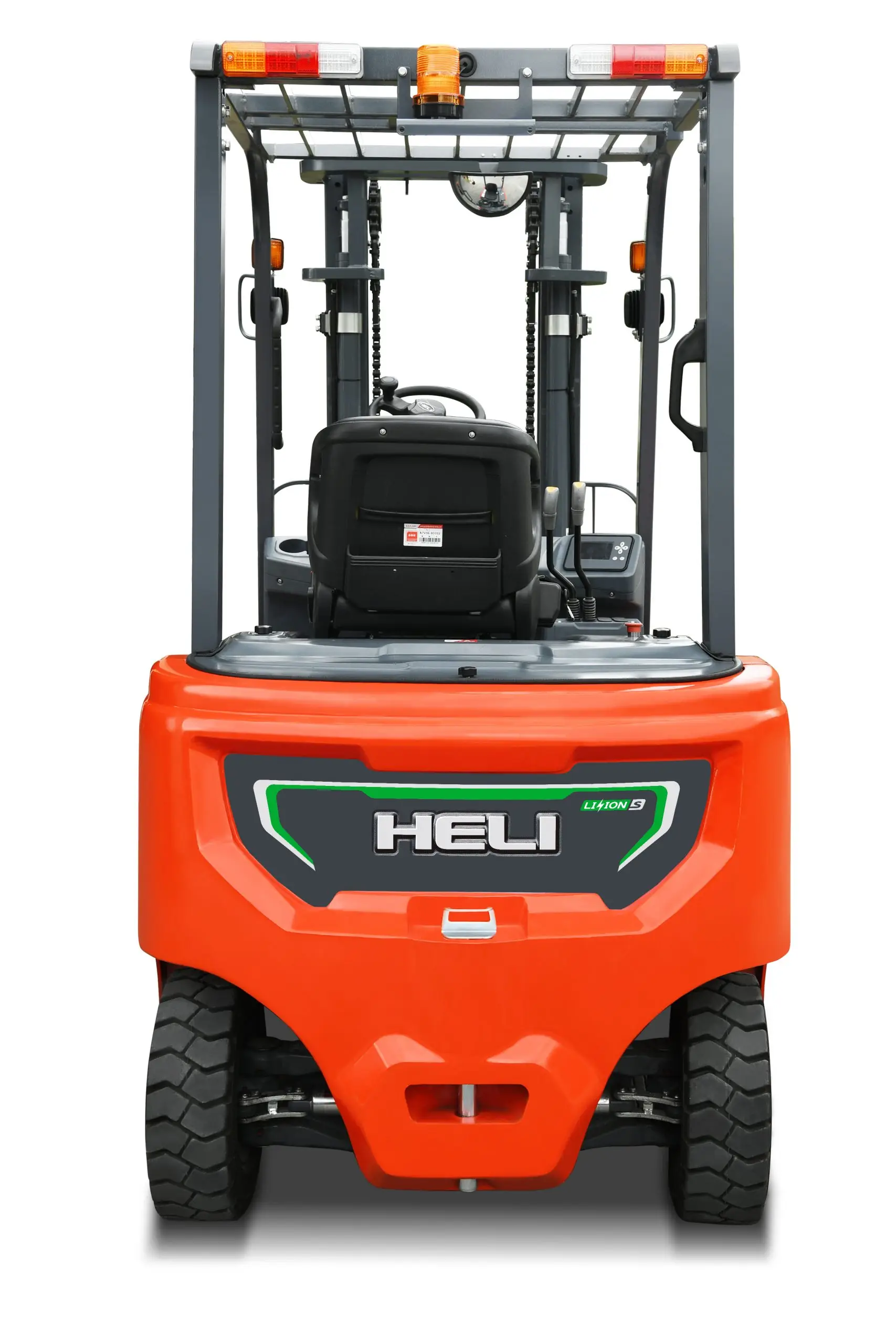

1.5-3.8t H4 Series Four Wheel LI-ION Forklift
1.5-3.8t H4 Series Four Wheel LI-ION Forklift
1.5-3.8t H4 Series Four Wheel LI-ION Forklift - Image 2
1.5-3.8t H4 Series Four Wheel LI-ION Forklift - Image 3
1.5-3.8t H4 Series Four Wheel LI-ION Forklift - Image 4
1.5-3.8t H4 Series Four Wheel LI-ION Forklift - Image 5
1.5-3.8t H4 Series Four Wheel LI-ION Forklift - Image 6

1.5-3.8t H4 Series Four Wheel LI-ION Forklift

  1. Dashboard full package design: water cup holder and cell phone slot, standard USB interface (S optional, M standard).
  2. More friendly man-machine interaction: intelligent color screen instrument, graphical interface design, Chinese/English fault display, integrated handheld unit function.
  3. Good heat dissipation: electronic control is placed on the counterweight, side-mounted welding tank.
  4. Intelligent safety: imported INMOTION dual-core controller for safety.
  5. Comfortable and energy-saving: PES three-gear mode, a variety of speed modes according to the working conditions of free choice, to protect the operational efficiency, optional full suspension seat and side-shift pitch fork, operational comfort, convenience and high efficiency.
  6. Worry-free range: lithium battery is equipped with low-temperature automatic heating as standard, fast charging speed, superior adaptability, no need to worry about range.

Parameter

Model designationCPD15CPD18CPD20CPD25CPD30CPD35CPD38
Load capacitykg1500180020002500300035003800
Load centermm500500500500500500500
Battery voltageV80808080808080
ControllerINMOTION / HELI
,INMOTION / HELI
,INMOTION / HELI
,INMOTION / HELI
,INMOTION / HELI
,INMOTION / HELI
,INMOTION / HELI
BatteryLithium batteryLithium batteryLithium batteryLithium batteryLithium batteryLithium batteryLithium battery
OtherBattery Side ExtractionBattery Side ExtractionBattery Side ExtractionBattery Side ExtractionBattery Side ExtractionBattery Side ExtractionBattery Side Extraction
